Introduction
Details
Guide Steps
Review
Quiz

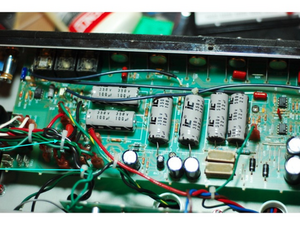

Remove all zip ties. They can be clipped off, be sure to not clip any wires or strip any insulation from the wires.
Unplug all of the quick connect leads from the choke, power, and output transformers and the switches by pulling on the quick connect firmly with steady pressure while gently rocking it from side to side. Using a pair of angled needle nosed pliers makes this much easier
As you remove each lead be sure to mark the terminal number on the lead with a fine point Sharpie pen so you will know where to plug it back in when the amp mods are done
Remove all PCB standoff screws and the solder terminal screw connecting the green ground wire from the Main Pcb near the input jacks to the chassis.
Remove knobs and all nuts and washers from the control panel
